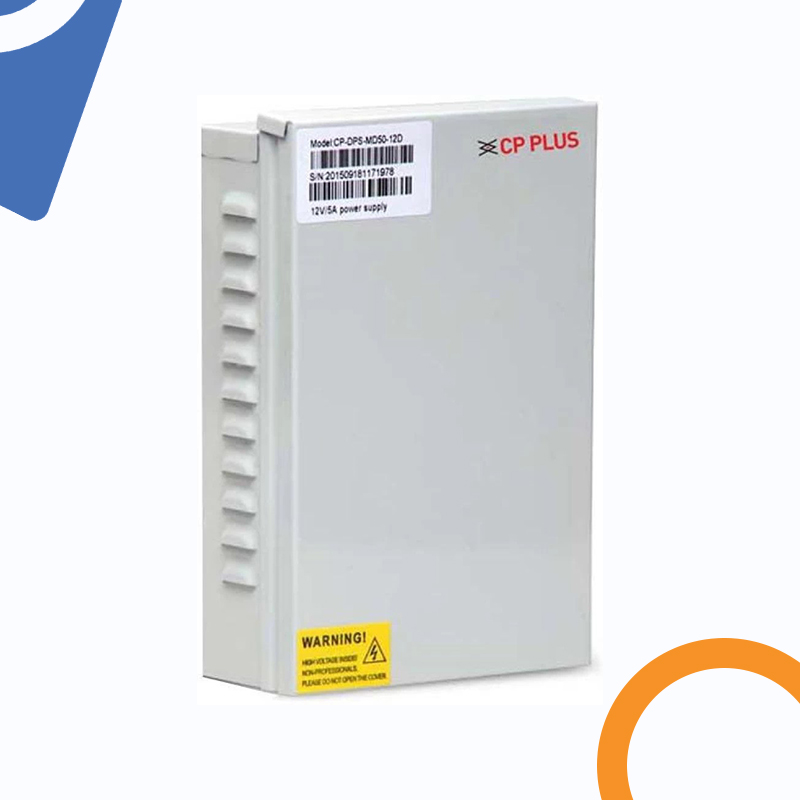

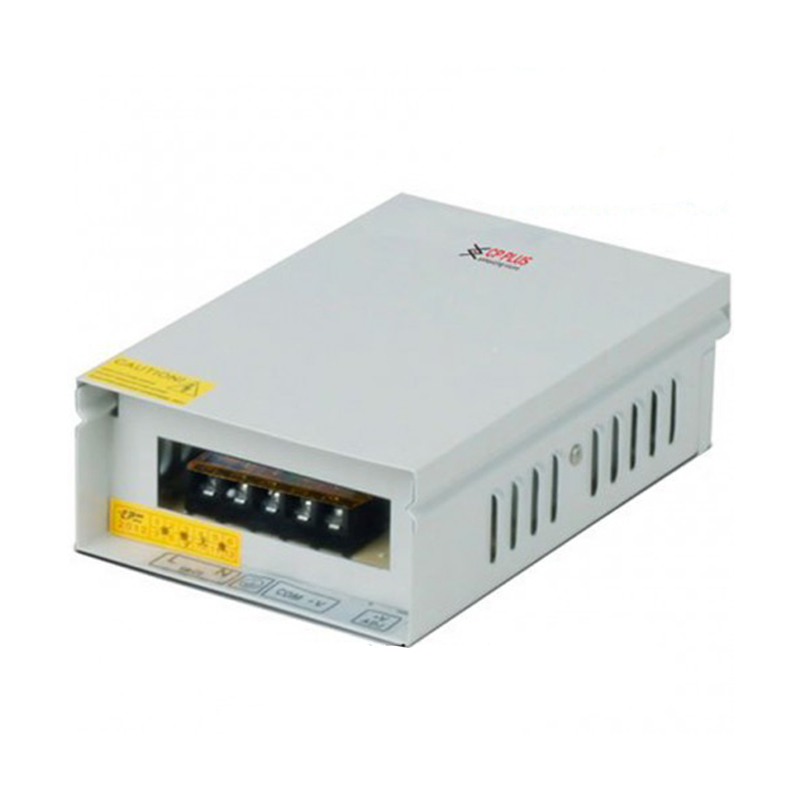

Reliable 12V Metal Case Power Supply - 5A Output (CP-DPS-MD50P-12D)

0
0 Reviews 0 Orders 0 Wish listed
रु1,175 (Tax : )
Quantity:
Total price :

Out of stock

Description:

Ensure continuous power supply for your surveillance cameras with the CP-DPS-MD50P-12D Metal Case Power Supply from CP. Designed to meet the demands of high-power CCTV systems, this power supply offers a wide input voltage range of 190V~250V AC, making it suitable for various installation environments. With a stable output of 12V and a maximum current of 5A, it provides sufficient power to support multiple cameras without compromising performance. Equipped with built-in EMI filters, voltage regulators, and multiple protections against overload, overvoltage, and short circuits, this power supply ensures reliable and safe operation. The metal housing facilitates uniform heat dissipation, enhancing durability and longevity.

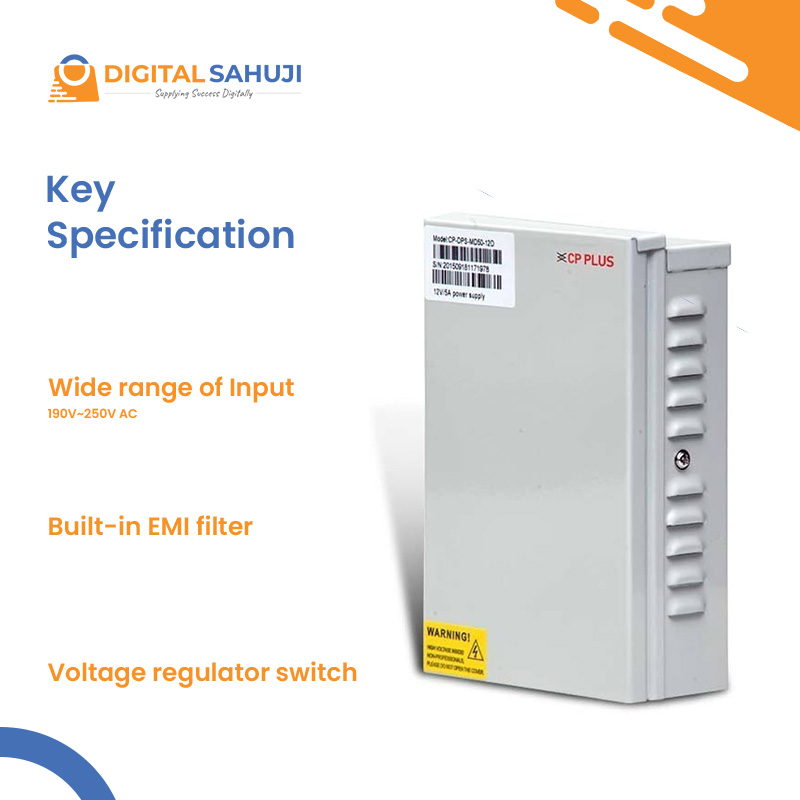

Key Features:

Wide Input Voltage Range: Supports input voltages from 190V to 250V AC, ensuring compatibility with different power sources.

High Power Output: Delivers a stable 12V output with a maximum current of 5A, suitable for powering multiple surveillance cameras simultaneously.

Built-in EMI Filters: Minimize electromagnetic interference, ensuring clean and stable power delivery to connected devices.

Voltage Regulator Switch: Allows adjustment of the output voltage within a range of 11.4V to 13.2V for optimal performance.

Comprehensive Protections: Features protections against overload, overvoltage, and short circuits, safeguarding both the power supply and connected devices.

Metal Housing: Provides efficient heat dissipation and ensures durability, ideal for long-term use in demanding environments.

Reliable, efficient, and versatile, the CP-DPS-MD50P-12D Metal Case Power Supply is the perfect solution for powering surveillance camera systems. With its wide input voltage range, high power output, and advanced safety features, it delivers consistent and uninterrupted power to ensure the smooth operation of your CCTV setup. Invest in the CP-DPS-MD50P-12D for dependable performance and peace of mind in your security applications.

Technical Specification:

Input voltage

180~264VAC

Output voltage

12V DC

Current Range

0~5A

Rated Power

60W

Ripple & Noise (max.)

100mVp-p

Voltage Adj. Range

11.4~13.2V

Line Regulation

±1.0%

Voltage Tolerance

±2.0%

Setup Rise time

600ms, 30ms at full load

Hold Up Time (Typ.)

13ms at full load

Load Regulation

±5.0%

Temperature coefficient

±0.03%/°C (0~50°C)

Frequency Range

47~63HZ

Efficiency (Typ.)

84%

AC Current (Typ.)

5A/115VAC 3A/230VAC

Inrush Current (Typ.)

20A/115VAC 40A/230VAC

Leakage Current

<2mA / 240VAC

Over Load

110~200% rated output power, Protection type: Shut down O/P, re-power

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Working Humidity

20~90% RH Non-condensing

Vibration

10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X, Y, Z axes

Dimension

156(L) x 103(W) x 47mm(H)

Store temperature

-20~+85°C, 10~95%RH

Working temperature

-20~+40°C

Withstand Voltage

I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
